YOUR COMPETITOR MAY BE GAINING MORE THAN 20% IN THE PRODUCTION OF EACH MATTRESS

See how you can get the same results at the end of a work shift

Quality

QUALITY

Quilted up to 100 mm/height

ECONOMY

ECONOMY

Zero waste between top panels

Quality

PRODUCTIVITY

20% effective gain in closing each mattress

Quality

PERFORMANCE

Production of 2/3 top panels/m

Quality

Industry 4.0

It interacts full-time with the operator, allowing them to receive information in real time.

QUALITY & PERFORMANCE

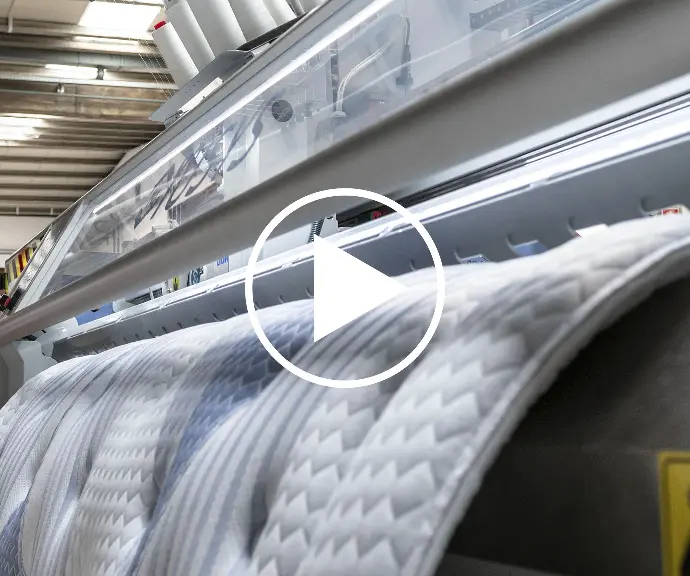

IUSYS S4s-A has been designed to be the machine that best combines quality and performance in the quilting industry. With efficient performance provided by three JUKI heads, the IUSYS S4s-A is capable of achieving 16m/m of sewing, reaching the 3 top panels/m mark. This equipment is equipped with unique features capable of making your production not only more efficient, but also more constant and effective.

OPTIMIZE EVERY SECOND OF YOUR PRODUCTION

IUSYS S4s-A enhances and optimizes your production, combining two activities that used to be done separately, cutting and hemming, thus removing the need for an extra operator and ensuring that the top panel is automatically ready at once.

GET 20% EFFICIENCY IN CLOSING EACH MATTRESS

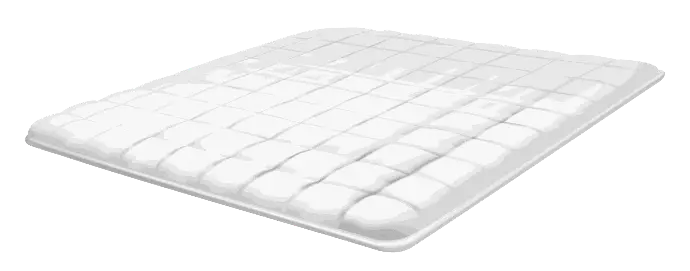

IUSYS S4s-A cuts and hems quilted top panels to size, making it easier positioning and closing of each mattress. This feature gives not only a high quality to your final product, but an effective gain of 20% per mattress

Useful working area | Length = X | Width = Y :2400mm x 2400mm

Number of stitches per minute: up to 2500rpm

Stitch Width: 1 to 8mm

Maximum sewing speed up to 15m/min – 2-3 top panels per minute (reference value for 200cm x 200cm top panels)

General

3 Juki heads (Japan) chain stitch for 4 rows of sewing and 6 positions with a spacing between them of 6.35mm

Presser foot with synchronized needle movement and up to 20 mm height of the base

Automatic needle on top positioning

Side Seams

2 side sewing heads

2 260mm cutting discs (side heads)

2 Pneumatic disc lifting systems

Fine tuning system for adjustment between cutting and sewing

Cross seam

1 cross sewing head

End sewing automatic thread cutting system

1 130mm cutting disc

Polychrome touch screen

Speed ​​control

Stitch length and speed adjustment

Cutting measurement by encoder or photocell

Automatic / Semi-Automatic / Manual Selection

Allows you to work a quilt up to 100mm in height

Electronic side disk adjustment systems

Multi-needle machine connection system

Roll unwinding system up to 1m of Diam

Encoder counting system 150mm to 9999mm

Roll counting system up to 99m

Bag waste extraction system

Automatic top stacker – see more

Approximate weight 1900 kg

Maximum power 4.5kW

Voltage 380V + III + T 50/60 Hz

Air pressure 6 bar

Yes, we are manufacturers of quilting and hemming equipmentfor the mattress, comforter and clothing industry
