FOLD AND ROLL MATTRESSES INTO AN IDEAL PACKAGING FOR SHIPPING, E-COMMERCE AND RETAIL.

Receive more information about this equipment.

Quality

COMPRESS

The compacting press guarantees consistent compression of up to 100 tons

ECONOMY

FOLD

FOLD BOTH VERTICAL AND HORIZONTALLY, CREATING A HIGHER OR LOWER PACKING HEIGHT

Quality

ROLL

Rolls the mattresses to a preset size

QUALITY & PERFORMANCE

IUSYS PR210 is designed to enhance and optimize your production. This compacting, folding and rolling system allows you to produce up to more than 500 mattresses per shift (8 hours).

Step-by-step process

COMPRESS

The IUSYS PR210 is equipped with a compacting press controlled at all four corners, thus ensuring uniform pressure over the entire mattress surface.

SEAL

The IUSYS PR210 consists of heat-sealing bars, which block compression of the mattress and keep the package sealed and secure.

FOLD

Always emphasizing the automation of the packaging process, IUSYS PR210 allows you to create the ideal packaging for various markets. With a module that allows two options, folding the mattress vertically or horizontally, creating a higher or lower packaging height according to the desired.

ROLL

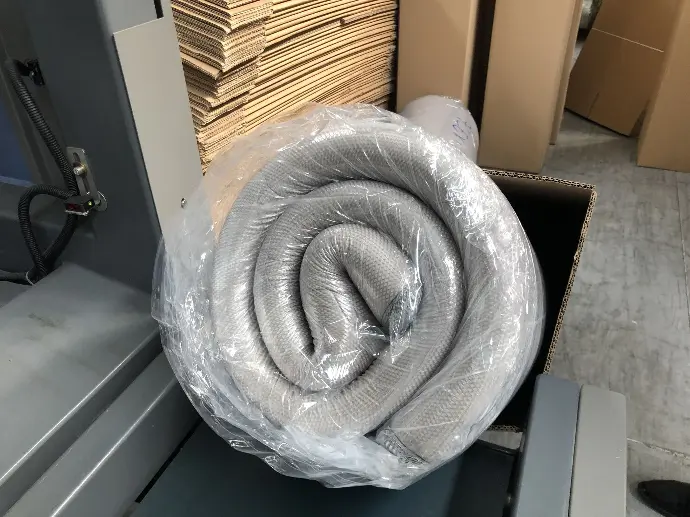

The mattresses are rolled and packed directly into a polyethylene bag, so the dimension is minimal and it is possible to get rolled mattresses with a diameter of between 22-50 cm (fixed diameter at your choice).

Pressure plate size: 2100mm x 2100mm

Maximum pressure: 100T

Max. size Mattress: 2100 x 2100 x 400mm

Efficiency: 35s/pcs

Diameter: Adjustable (22-50cm)

Total power: 46 Kw

Foam density: ≥ 25kgs/ m³, ≤65kgs/ m³

Voltage: 380V/ 50Hz

Total weight: 20000Kg

Overall size: 14422 x 3377 x 2830 mm

Compacting, folding and rolling allows you to produce
up to 500 mattresses per shift (8h)
